Our screwing station combines technology, performance
and reproducibility allowing you to control and
monitor all your screw-top containers.
Screw your vials and bottles effortlessly, with controlled,
reproducible and documented torque
• Easy, effortless use.
• Ideal for the pharmaceutical, perfume and
cosmetics industries.
• The system can be adapted for specific applications.
• 7” colour touch screen featuring:
– A production menu where you can select your
formulae and enter the batch number or any other
data as required.
– Live viewing of the current, target and final
screwing torque.
– Formula editing and changing.
– A password-protected settings menu.
– Export of production data to a USB stick.
– Production counter/total counter.
• Fast, tool-free jaw and gripper changing.
• Specially developed for screwing plastic caps with
or without a tamper-proof ring for use in laboratories
and in the pharmaceutical, perfume and cosmetics
industries.
• Movement of the grippers by linear guidance.
• Electric motor/gearbox with precisely controlled screwing parameters.
• Target torque setting in Newtons (0.6 to 2.5Nm) (Other target torques available on request. Accuracy
0.1Ncm).
• Universal design meets all the requirements for screwing vials.
• Working area protected by infrared sensors and an emergency stop button.
• Plugs into the mains socket on your lab bench/isolator or on a trolley (option).
• Built-in power supply.
• Developed and designed in France.
• Can be custom adapted.
• IQ/OQ qualification possible.

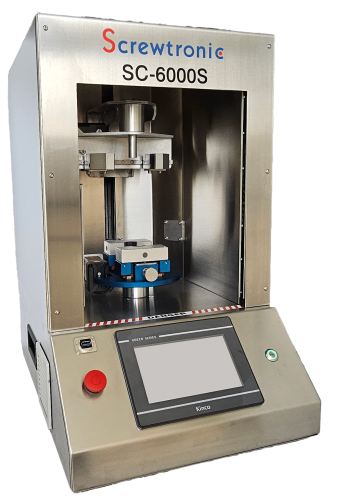

A high-performance electric screw station specially designed for the torque-controlled screwing of
plastic caps and closures with or without a tamper-proof ring, fragrance pumps, dosing pumps, droppers
etc.
Its interchangeable accessories allow you to screw all sizes of closures and vials/bottles quickly and
without tools.
Stable, easy to use and maintain, this electric screw station has a working area protected by infrared
sensors.
The force setting and screwing height can be adjusted gradually. In your formulae you can define the
name and batch number, adjust the various working axes (X, Y, Z) and the target torque, and view the
torque actually achieved. These data can be exported to a USB stick in .csv/Excel format.
Movement of the screw head is by linear guidance.
Use simply requires a 230V/50Hz power supply.
Height : 65cm
Width : 41cm
Depth : 57cm
Weight : 53Kg
